171-131610

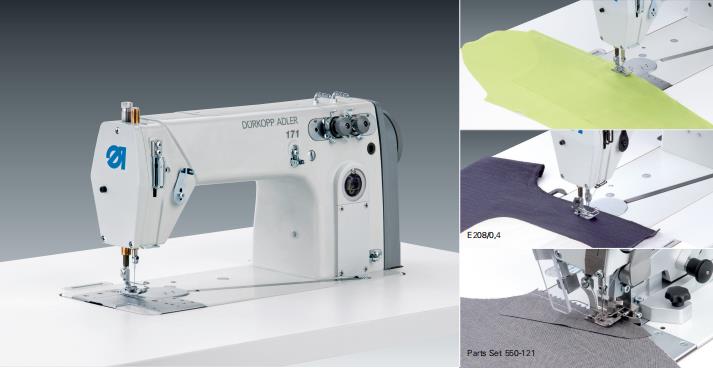

Single needle double-chainstitch machine with bottom feed and automatic functions

                                  • Soft stitch formation, no puckering

                                  • Optimum stitch formation due to automatic adapta-tion of the looper thread

                                     quantity – tight but still elastic seams

                                  • Quick and easy conversion to a twin needle ma-chine

                                  • Universal application due to big variety of sewing equipments and attachments

                                  • Expandable with part set 550-121 to create an opti-mized workstation for sewing

                                    and pinking the crotch piece of trousers

                                  • Hook knife

                                 Field of application

                                 General operations in most different garment sectors:

                                 • Trousers seat seam with tandem-sewing-equipment

                                 • Sleeve seams in jacket lining and outer fabric

                                 • Sewing and pinking the crotch piece of trousers (with part set 550-121)

                                Performance features

                                • Closing of 920 – 950 trousers seat seams / 480’

                                • 2,000 crotch pieces of the trousers / 480’ (with part set 550-121)

                                • Max. stitch length 4.0 mm

                                • Max. sewing speed 6,600 stitches/min.
