173-141621

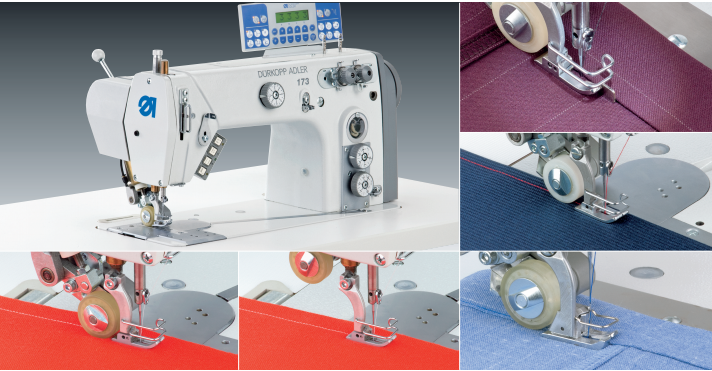

Single needle double-chainstitch machine with bottom feed and top puller feed and automatic functions

                                  • Energy-saving, integrated positioning drive

                                  • Condensed stitches for securing the seam begin-ning and the seam end

                                  • Smooth, pucker-free seams, even for materials dif-ficult-to-feed by chainstitch

                                     technology in combina-tion with top puller feed

                                 • Absolute speed stability of the top puller feed

                                 • Soft stitch formation, no tension puckering

                                 • Optimum stitch formation due to automatic adapta-tion of the looper thread quantity

                                 • Tight but still elastic seams

                                 • Automatic sewing foot lift and thread trimming

                                    Field of application

                                 • General operations with or without top puller feed, with or without seam interruptions

                                 • Closing of long seams in jacket and trousers production

                                 • Topstitching of elastic waistbands

                                   Performance features

                                • Top puller feed adjustable up to a feed length of 7.0 mm

                                • Max. stitch length 4.0 mm

                                • Max. sewing speed 6,000 stitches/min.
