176-141621

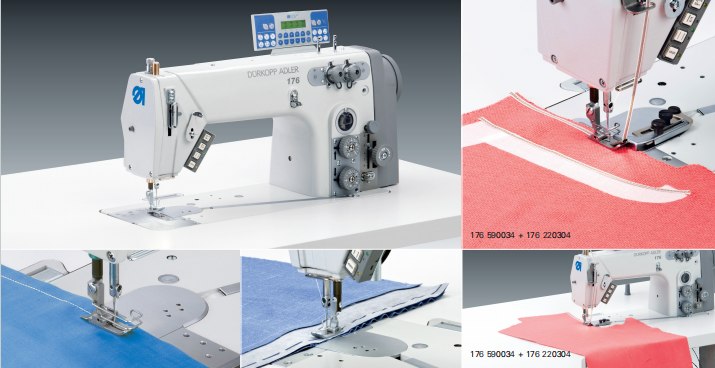

Single needle double-chainstitch machine with dif-ferential bottom feed

                                  • Energy-saving, integrated positioning drive

                                  • Constant or partial fullness in the lower material ply

                                  • Soft stitch formation, no tension puckering

                                  • Optimum stitch formation due to automatic adapta-tion of the looper thread quantity

                                  • Tight but still elastic seams

                                  • A preset fullness can be called up via push-button (optional)

                                  • Reproducible adjustment of stitch length and differ-ential feed length via setting wheels

                                  • Automatic sewing foot lift and thread trimming

                                  • Condensed stitches to secure the seam beginning and the seam ending

                                   Field of application

                                  • Seams with or without fullness in the lower materi-al ply in light-weight to medium

                                     -weight material

                                  • Taping operations in outerwear

                                  Performance features

                                 • Taping of jacket front and back parts, 300 – 400 jackets / 480’

                                 • Max. differential feed length 6.0 mm

                                 • Max. stitch length 4.0 mm

                                 • Max. sewing speed 5,000 stitches/min.
