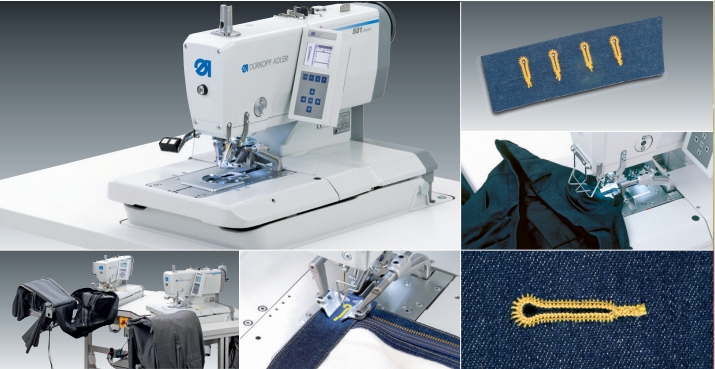

581-141 CLASSIC

Automatic double-chainstitch eyelet buttonholer with short thread trimmer – specialized

                                                                           for maxi-mum output

                                  • Short thread trimmer for needle thread, looper thread and gimp thread (in case

                                     of round eyelets the looper thread is cut manually)

                                  • High-quality control system of DAC comfort and Machine-ID

                                  • Machine parameters can be copied by USB-flash drive

                                  • Saving of machine parameters in machine-ID; all parameters are retained after

                                     changing the control box

                                  • Improved seam quality by optimized needle thread tension with self-monitoring function

                                  • Use of long-life, electro pneumatic valves, regional sourcing – e.g. Asia

                                  • Gimp thread control (optional)

                                  • Double stitching function for buttonholes

                                  • Sewing equipment with special upper fabric clamps to sew buttonholes in

                                     trousers waist-bands*

                                 Field of application

                                 Eyelet buttonholes and double-chainstitch round eyelets in trousers, jeans,

                                 sportswear and workwear

                                Performance features

                                • Cutting length 10.0 – 32.0 mm*

                                • Diameter of round eyelets 1.0 – 5.0 mm*

                                • Max. sewing speed 2,500 stitches/min. * = according to sewing equipment
