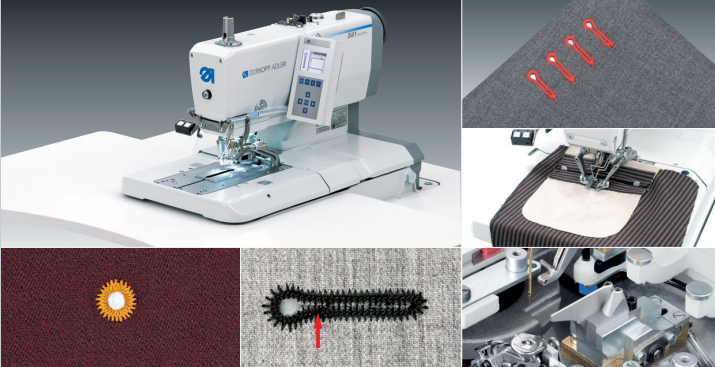

581-312 MULTIFLEX

Automatic double-chainstitch eyelet buttonholer with innovative Multiflex cutting system

                                      • Short thread trimmer for needle thread and looper thread, without gimp thread

                                      • High-quality control system of DAC comfort and Machine-ID

                                      • Machine parameters can be copied by USB-flash drive

                                      • Saving of machine parameters in machine-ID; all parameters are retained

                                         after changing the control box

                                      • Improved seam quality by optimized needle thread tension with

                                         self-monitoring function

                                      • Use of long-life, electro pneumatic valves, regional sourcing – e.g. Asia

                                      • Different buttonhole shapes and lengths without change of cutting tools

                                      • Programmable sewing start for round tacks in the eye (e.g. sleeve vent

                                         buttonholes or trousers hind pockets) * = according to sewing equipment

                                      Typical field of application

                                      Buttonholes of every shape and length without change of cutting tools

                                     Performance features

                                     • Cutting length 8.0 – 38.0 mm*

                                     • Diameter of round eyelets 1.0 – 5.0 mm*

                                     • Max. sewing speed 2,500 stitches/min. * = according to sewing equipment
