533

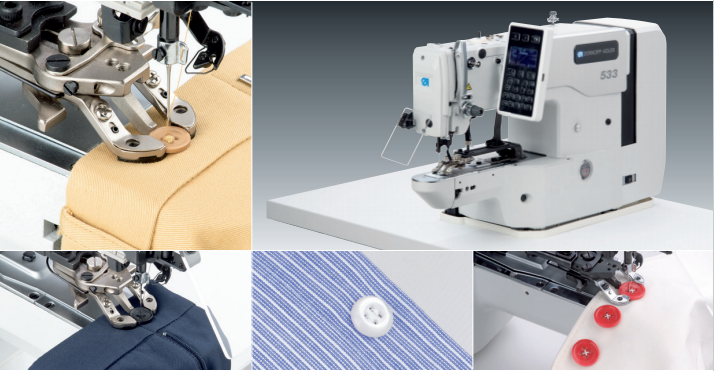

CNC-controlled lockstitch button sewer with step motor technology

                                    • Short cycle time for higher efficiency due to step motor controlled clamp lifting

                                    • Thread wiper for neat seam beginning

                                    • No oil contamination of the material due to oil-free construction of the machine head

                                    • No compressed air required

                                    • Simple and user-friendly control panel

                                  Field of application

                                  • Attach buttons with 2, 3 or 4 holes and button diameter of 8.0 – 40.0 mm

                                    (depends on equipment)

                                  • Sewing on press buttons is possible

                                  Performance features

                                  • Equipped with standard button clamp for button diameters of 8.0 – 24.0 mm

                                  • 50 preprogrammed button pattern to choose

                                  • Memory capacity for 100 user defined patterns

                                  • 25 sequences each max. 30 bartacks

                                  • Sewing speed max.2,700 stitches/min.
