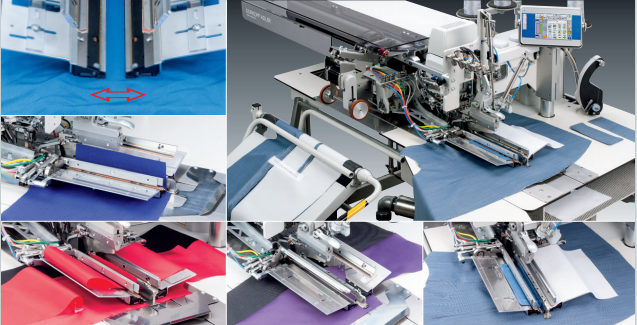

755 ASewing unit for runstitching of straight piped pockets, flap pockets and welt pockets
• Programmable needle transport for materials diffi-cult-to-feed • Special “knitwear mode” for tension-free sewing of piped pockets • Programmable laser marking lamps in longitudinal and horizontal directions • Step motor-controlled transport clamp adjustment with material spreading – e.g. for lining or stretch material • Programmable transport clamp pressure for differ-ent materials such as lining applications with rein-forcement tape and stretch materials • Short conversion time from one to the other needle distance (approx. 30 min.) • Step motor driven center blade drive with extended flexibility in material use due to adjustable knife stroke – low knife wear • Folder concept – modular system • Device for automatically feeding and cutting of endless zippers from the roll (option) Field of application • Jacket and coats production, workwear, sportswear, trousers production Performance features • Single- or double piped pockets with flaps in front jackets: 1,300 – 1,600 pockets / 480’ • Double piped pockets in hind trousers: 2,200 – 2,600 pockets / 480’ • Needle distances from 4.8 – 30.0 mm available Last755 A Zipper DeviceNext755 S |
