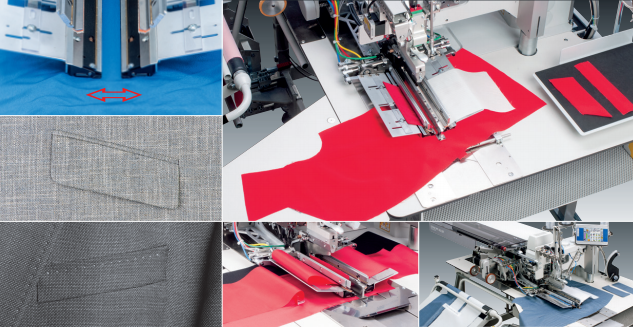

756 ASewing unit for runstitching of straight and slanted piped pockets, flap pockets and welt pockets
• Multifunction corner knife station for straight or slanted pockets – freely programmable in pocket length, slants and angle • Programmable needle transport for materials diffi-cult- to-feed • Special “knitwear mode” for tension-free sewing of piped pockets • Programmable laser marking lamps in longitudinal and horizontal directions • Step motor-controlled transport clamp adjustment with material spreading – e.g. for lining or stretch material • Programmable transport clamp pressure for differ-ent materials such as lining applications with rein-forcement tape and stretch materials • Short conversion time from one to the other needle distance (approx. 30 min.) • Folder concept – modular system • Device for automatic feeding and cutting of end-less zippers from the roll (option) Field of application • Jacket and coats production, workwear • Trousers production Performance features • Single- or double piped pockets with flaps in front jackets: 1,300 – 1,600 / 480’ • Double piped pockets in hind trousers: 2,200 – 2,600 / 480’ • Needle distances from 8.0 – 30.0 mm available Last755 BNext755 A Zipper Device |
