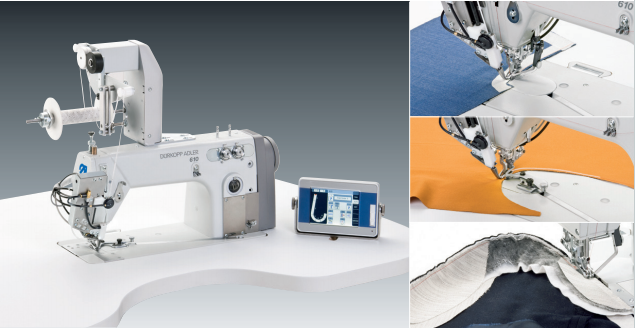

610-10Special machine for programmed taping of the armholes and pre-ruffling of the sleeve crown
• Pre-ruffling and taping with only one machine (for tape width up to 3 mm) • Double-chainstitch with individually controllable dif-ferential top and bottom feed, step motor-con-trolled, for perfect, finely graded fullness with accu-rate repetition • Automatic feeding and cutting of the reinforcement tape • Automatic mirroring of the first seam • Function “Grading logic” for fully automatic pro-gram creation in all sizes, user-friendly even for op-erators with little prior experience – without input of grading values • Touch control panel with graphic display for easiest handling and programming • Ergonomic workplace for fatigue-free operation • LED illumination of the sewing field Field of application • Taping of the armholes • Pre-ruffling of the arm crown with or without sleeve head roll Performance features • Taping of 500 pairs of armholes in men’s jacket front parts / 480’ • Taping of 700 pairs of armholes in men’s jacket back parts / 480’ • 300 complete jackets / 480’ • Memory capacity for 999 programs • Max. sewing speed 5,000 stitches/min. • Max. stitch length 4.0 mm |
