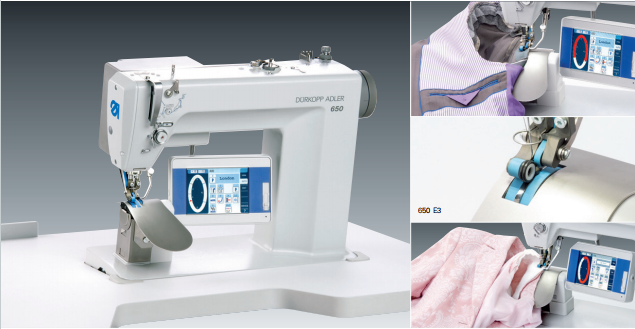

650-10Special machine for programmed sleeve setting – with patented, self-learning grading logic
• Standard grading values automatically calculate the program for every size – without input of grading values • Easiest correction mode for the automatic grading values • Function „curve support“ for easier handling, espe-cially in the sleeve crown • Finest fullness nuances via belt transport to handle sleeve fullness even in most difficult fabrics • New sewing equipment E3 especially for very thin materials with thread sizes Tkt. 150-120 • Electronic thread tension for perfect seams in most different materials and applications • Programmable sewing foot alternation to sew over thick cross seams / epaulettes etc. • Touch control panel with visualization of the seam course • Ergonomic design of workplace for fatigue-proof working, LED sewing lamp as standard Field of application • Setting sleeves with or without pre-ruffled sleeve crown • Sewing sleeve head rolls in armholes Performance features • 170 – 250 men’s jackets (depending on workman-ship) / 480’ • Memory capacity for 999 programs • Max. sewing speed 4,000 stitches/min. • Max. stitch length 4.0 mm |
