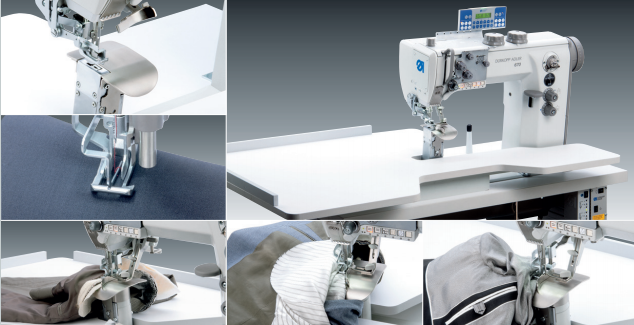

670Special machine – attaching sleeve lining in armholes through the shoulder pad
• Alternating top feed with needle feed • Programmable, automatic material thickness de-tection • Integrated 6-function key bar for quick access • Switchable: Stitch loosening, 2nd stroke and 2nd stitch length • Switchable fullness distribution via push button either in upper or lower material ply • Automatically or manually switchable stitch loos-ening for a“soft” shoulder pad • Stitch loosening device to adapt the thread quan-tity to the thickness of the shoulder pad • Asymmetric shoulder pad processing with two different values for switching on/off the stitch loosening function • Central oil wick lubrication Field of application • Attaching sleeve lining through the shoulder pad • Attaching sleeve lining in the lower armhole section • Attaching the sleeve head roll Performance features • Attach 160 – 210 pairs of sleeve lining / 480’ • Attach 300 – 350 pairs of sleeve head rolls / 480’ • Max. sewing speed 1,800 stitches/min. • Max. 9.0 mm stitch length (depending of sewing equipment) |
