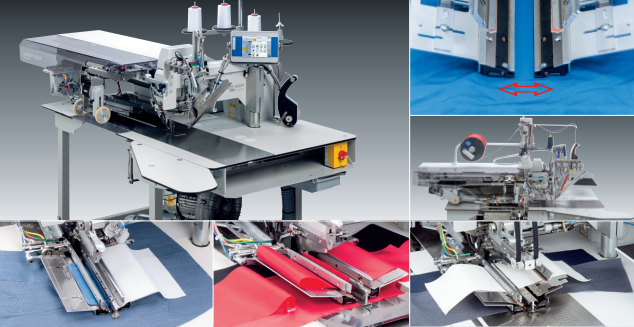

755 A

Sewing unit for runstitching of straight piped pockets, flap pockets and welt pockets

                                            • Programmable needle transport for materials diffi-cult-to-feed

                                            • Special “knitwear mode” for tension-free sewing of piped pockets

                                            • Programmable laser marking lamps in longitudinal and horizontal directions

                                            • Step motor-controlled transport clamp adjustment with material spreading – e.g.

                                               for lining or stretch material

                                            • Programmable transport clamp pressure for differ-ent materials such as lining

                                              applications with rein-forcement tape and stretch materials

                                            • Short conversion time from one to the other needle distance (approx. 30 min.)

                                            • Step motor driven center blade drive with extended flexibility in material use due

                                               to adjustable knife stroke – low knife wear

                                            • Folder concept – modular system

                                            • Device for automatically feeding and cutting of end-less zippers from the

                                               roll (option)

                                          Field of application

                                          • Jacket and coats production, workwear, sportswear, trousers production

                                         Performance features

                                         • Single- or double piped pockets with flaps in front jackets: 1,300 – 1,600

                                            pockets / 480’

                                         • Double piped pockets in hind trousers: 2,200 – 2,600 pockets / 480’

                                         • Needle distances from 4.8 – 30.0 mm available
