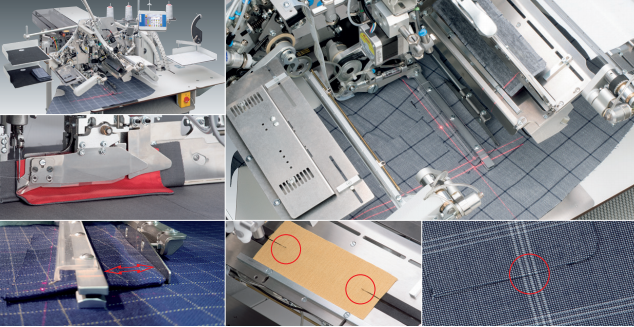

756 FSewing unit for runstitching straight and slant-ed pocket openings with fully automatic feeding and matching device
• Programmable pattern correction in transverse direction • Mechanically adjustable flap guide for quality con-trol – for perfect flap widths during pattern match-ing • Unique programmable material adjustment for easy setting of different material thicknesses by the op-erator – pocket materials of different thickness can be processed one after the other without mechani-cal adjustments • New piping cutting technology: Simultaneous, time-saving cutting of the piping ends using step motor technology – perfect incisions even in sensi-tive materials • Time saving approx. 20% due to automatic cutting of piping ends • Perfect folder system: improved material passage – simple, fast and low-cost exchange of folder and sole inserts • Quick change of needle distance faster, more con-venient and cost-effective Field of application Patterned and plain-coloured outside pockets of ladies’ blazer / men’s jackets Performance features • Approx. 1,000 – 1,200 pockets with patterned flaps / 480` • Approx. 1,600 – 2,000 pockets with plain-coloured flaps / 480` • Max. sewing speed 3,000 stitches/min • Needle distances: 10.0 – 20.0 mm Last175-141621Next756 D |
