179-171629

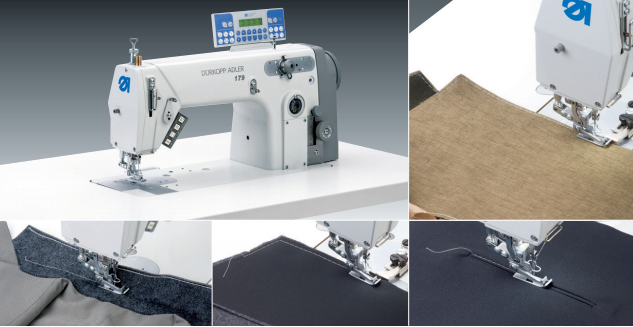

Single chainstitch machine with bottom feed and differential top feed

                                         • Energy-saving, integrated positioning drive

                                         • Sewing equipment for basting operations with or without partial fullness

                                           in the upper material ply

                                         • A preset fullness can be called up via push-button (option)

                                         • Large stitch length and thread trimmer for long thread ends to enable easy

                                           removing of the basting threads after ironing

                                         • Automatic adaptation of the top feed stroke for good climbing properties and

                                           for sewing without leaving any marks on the fabric

                                        Field of application

                                        • Edge basting operations in the production of men’s jackets and coats

                                        • Fancy basting seams, e.g. at the sleeve vent or pocket opening

                                        Performance features

                                        • 490 – 500 jackets – baste front edges / 480’

                                        • Max. top feed length 8.0 mm

                                        • Stitch length 4.0 – 6.0 mm

                                        • Max. sewing speed 5,000 stitches/min.
