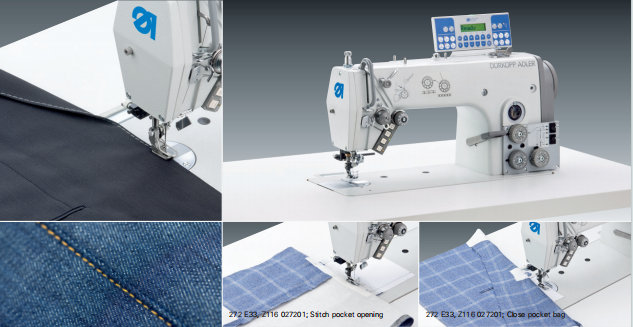

272-160362-01 TRI-FLEX

Single needle lockstitch machine with bottom feed and needle feed e.g. for finishing outside pockets of men’s jackets

                                           • “TRI-FLEX” device for sewing, decorative stitching or basting with only one

                                                 machine (option)

                                           • 6 mm stitch length and stitch loosening for basting the pocket opening

                                           • Stitch loosening can be switched off for decorative stitching

                                           • Large bobbin for a bobbin thread capacity increased by 70%

                                           • Neat seam beginning due to means of thread nipper

                                           • Sewing equipment available for medium weight to heavy weight material

                                          Field of application

                                          • Finishing and basting pockets in men’s jackets, blazers and coats (E33, Z116 027201)

                                          • Sewing and basting seams with vent in one opera-tion (e.g. skirt production)

                                          • Decorative stitching in outer garments, e.g. top-stitching of the jacket front edge

                                        Performance features

                                         • Max. stitch length 6.0 mm

                                        • Max. sewing speed 4,000 stitches/min.

                                        • Finishing and basting 750 piped pockets / 480’
