272-640642-01

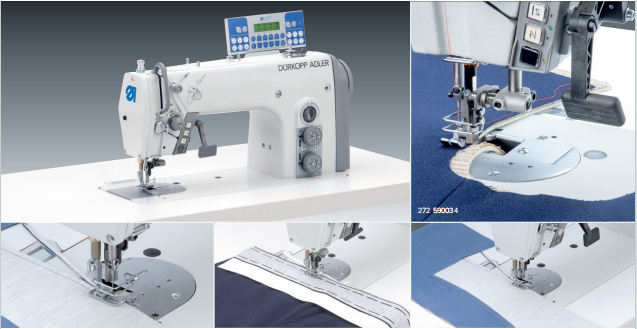

Single needle lockstitch machine with bottom feed, needle feed and mechanically switchable edge trimmer

                                           • Neatly cut edges due to mechanically edge trimmer

                                           • Displacement-free seams due to means of needle feed, even for materials

                                             difficult-to-feed

                                           • Neat seam beginning due to means of thread nipper

                                           • Integrated DC-sewing motor: wear-free and durable

                                           • To sew chest pieces in jacket front parts the edge cutter can be used independently

                                              from a stitch forming (option)

                                         Field of application

                                         Displacement-free straight seams with neatly cut edges e.g.:

                                         • Attaching breast darts in jacket fronts

                                         • Sewing waistband

                                         • Sewing chest pieces in jacket front parts

                                        Performance features

                                        • Sewing 790 chest pieces in jacket front parts / 480’

                                        • Max. stitch length 4.0 mm

                                        • Max. sewing speed 5,000 stitches/min.

                                        • Trimming margin from 3.5 – 8.0 mm, depending on sewing equipment

                                        • Sewing equipment for stepped trimming (optional), seam margin 4.5 and 7.0 mm
