272-740642-01

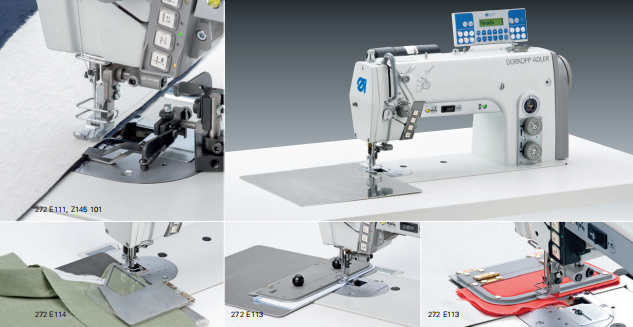

Single needle lockstitch machine with bottom feed, needle feed and separately driven edge trimmer

                                           • Separate driven edge trimmer for perfectly trimmed corners and curves

                                           • Easy and low-cost self-manufacturing of templates

                                           • Required fullness distributed equally

                                           • Displacement-free seams due to means of needle feed, even for materials

                                             difficult-to-feed

                                           • Optional equipment to increase efficiency, e.g. suction for trimming-waste,

                                              reflecting infrared light barrier for automatic sewing stop etc.

                                         Field of application

                                         • Runstitch and trim small parts, e.g. flaps, cuffs, waistband extension (E113)

                                         • Runstitch and trim peak lapels (E114)

                                         • Runstitch and stepped trimming of front edges in jackets / blazer (E111)

                                        Performance features

                                        • 450 – 500 jackets (runstitch and trim peak lapels) / 480’

                                        • 600 – 700 jackets (runstitch and trim flaps) / 480’

                                        • 350 – 390 shirts (runstitch and trim cuffs) / 480’

                                        • Trimming margin depends on sewing equipment from 3.5 – 8.0 mm
