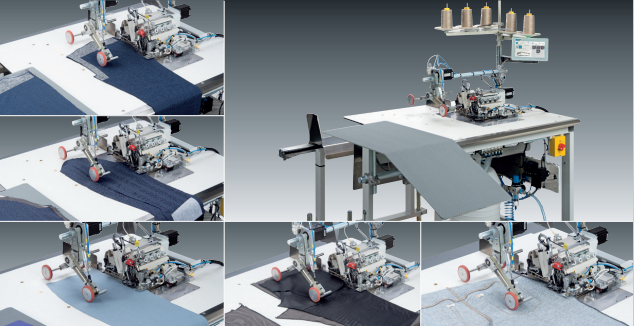

1280-7Sewing unit for semi-automatic sewing of side seams and inseams
• Touch screen “Commander Pro" with graphic dis-play for easy operation and quick access to modifi-able parameters • Intuitive operating concept with flexible interface design • High-quality control system of DAC compact and Machine-ID • Maximum flexibility by use of double-chainstitch seams or 4-thread and 5-thread safety seams alter-natively • Perfect fit due to partial fullness distribution in the upper or lower material ply • Equipment for manual sewing in the hip curve section when processing side seam pockets or wing pockets • Pneumatically moveable edge guide for trimming the excess lengths of pocket bags in sportswear trousers Field of application • Sleeve/body lining seams in blazer/jacket • Classical trousers and skirts • Sportswear trousers • Casualwear • Jeans Performance features • 1,550 – 1,700 side seams / 480’ • 1,700 – 1,900 inseams / 480’ • 380 – 400 complete trousers / 480’ • 1,800 - 2,200 skirt seams / 480' • 1,800 - 2,200 jacket centre back seams / 480' |
