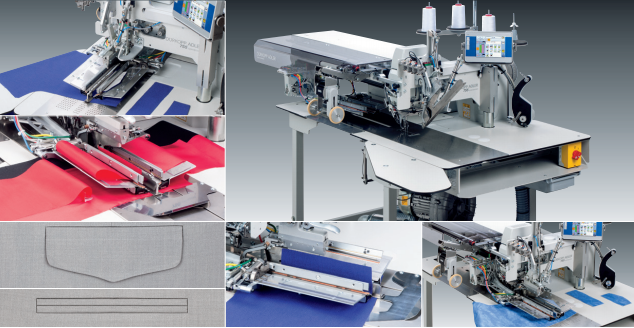

755 S

Sewing unit for runstitching of rectangular piped pockets, flap pockets and welt pockets

                                          • Manual feeding of all additional parts

                                          • Touch panel with color graphic display, 15 lan-guages choosable

                                          • Cutting device for needle and bobbin thread is vari-able for each needle

                                             distance adjustable

                                          • Step motor controlled middle-blade drive

                                          • Increased productivity due to large hooks (Ø = 26 mm)

                                          • Switchable additional thread tension allows a tight stitching in the area

                                             of the seam start and end

                                          • New folder concept with a modular system allows a quick change of the

                                            complete folder without tools

                                          • Optimized folder lowering prevents the material from slipping during the

                                             folding process

                                          • Extra large piping strips up to 60 mm piping exten-sion are easy to operate

                                          • Pressure monitor deactivates the machine when the pressure drops

                                          Field of application

                                          • Trousers pockets

                                          • Outside and inside pockets of men′s jackets

                                          • Workwear

                                          Performance features

                                          • 2,500 – 3,000 pockets (without flaps) / 480’

                                          • 1,800 – 2,200 pockets (with flaps) / 480’

                                          • Needle distances from 4.8 – 30.0 mm available
