755 A

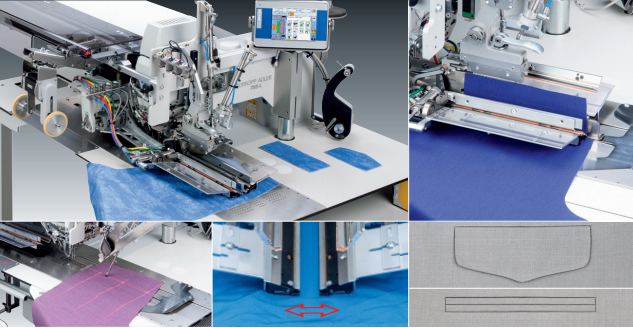

Sewing unit for runstitching of straight piped pockets, flap pockets and welt pockets

                                         • Programmable needle transport for materials diffi-cult-to-feed

                                         • Special “knitwear mode” for tension-free sewing of piped pockets

                                         • Programmable laser marking lamps in longitudinal and horizontal directions

                                         • Step motor-controlled transport clamp adjustment with material spreading – e.g.

                                            for lining or stretch material

                                         • Programmable transport clamp pressure for different materials such as lining

                                            applications with rein-forcement tape and stretch materials

                                         • Short conversion time from one to the other needle distance (approx. 30 min.)

                                         • Step motor driven center blade drive with extended flexibility in material use due

                                            to adjustable knife stroke – low knife wear

                                         • Folder concept – modular system

                                         • Device for automatically feeding and cutting of end-less zippers from the roll (option)

                                        Field of application

                                        • Jacket and coats production, workwear, sportswear, trousers production

                                       Performance features

                                       • Single- or double piped pockets with flaps in front jackets: 1,300 – 1,600

                                          pockets / 480’

                                       • Double piped pockets in hind trousers: 2,200 – 2,600 pockets / 480’

                                       • Needle distances from 4.8 – 30.0 mm available
