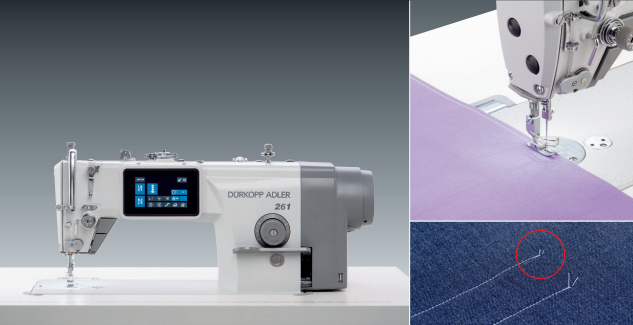

261-140345-02 / 261-140345-02 ASingle needle lockstitch machines with bottom feed and short thread trimmer for light to medium weight material
• Ergonomic operation by integrated touch control panel with colour graphic display for programming and running seam programs • A clean workplace is ensured by the minimal oil lubrication of the needle bar and the "Semi-Dry" lubri-cation concept • High efficiency due to energy-saving, integrated di-rect drive • Accurate stitch formation due to the standard thread nipper • Integrated, dimmable LED sewing light as standard equipment • Automatic sewing foot lifting, backtacking and short thread trimmer (remaining thread length approx. 3 mm) • Small hook • Convincing price-performance ratio • Version 261-140345-02 A for needle system DBx1 Field of application Universal use in all sectors of the apparel industry for light to medium weight material Performance features • Stitch length max. 5.0 mm • Sewing speed max. 5,000 stitches/min. • Max. sewing foot lift 12.0 mm • Needle size (system 134): Nm 70 – 90 • Needle size (system DBx1): Size 10 – 14 |
