1767-180342

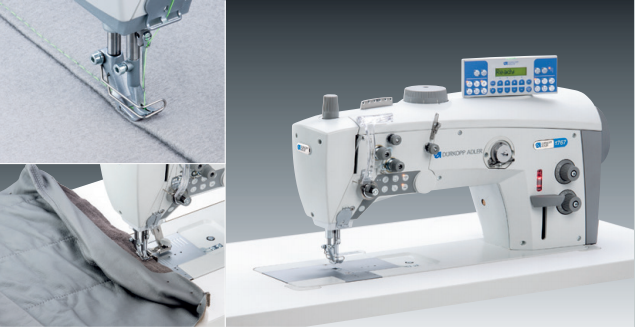

Single needle flat bed lockstitch machine with XXL vertical hook and additional functions – for maximum cost efficiency

                                            • Low life-cycle costs due to high reliability and dura-bility

                                            • Integrated sewing drive with “DAC classic” control incl. operating panel OP1000

                                            • Powerful and effective feeding system with bottom feed, needle feed and

                                              alternating feed

                                            • Increased productivity due to the XXL hook (Ø 32 mm)

                                            • High efficiency due to automatic functions like thread trimming, automatic

                                              backtacking, pneumatic sewing foot lift as well as additional functions like integrated

                                              second stitch length, additional thread tension and quick stroke adjustment

                                           • Sewing foot lift up to 20 mm facilitates the feeding and removing of

                                             bulky workpieces

                                          • Maximum sewing foot stroke height of 9 mm enables safe sewing of materials with

                                            different heights

                                          • Large clearance (350 mm wide and 125 mm high)

                                          • Also available as twin needle machine (1767-280342) and also available as twin

                                             needle version with short thread trimmer (1767-280345)

                                        Typical field of application

                                        Universal sewing operations for medium-heavy duty applications

                                        Performance features

                                        • Max. stitch length 9 mm

                                        • Thread sizes up to max. Tkt. 15/3

                                        • Max. sewing speed 3,000 stitches/min.

                                        • Max. sewing foot lift 20 mm
