1767-280342

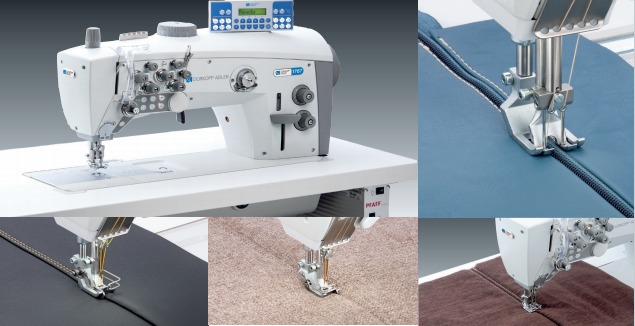

Twin needle flat bed lockstitch machine with XXL hook, 2nd switchable thread tension, 2nd stitch length and HP function

                                              • Integrated direct drive with networkable DAC classic control incl. operating

                                                panel OP1000 – Industry 4.0 „ready”

                                              • High efficiency owing to automatic basic functions like thread trimming, automatic

                                                backtacking and pneumatic sewing foot lift as well as additional functions like

                                                integrated second stitch length, additional thread tension and quick

                                                stroke adjustment

                                             • The large clearance and the slim sewing head allows easy handling of large-area

                                                workpieces

                                             • The powerful and effective feeding system  guarantees trouble-free and

                                               displacement-free  material feed when processing the most different  material

                                               thicknesses and structures

                                            • The sewing foot lift of up to 20 mm facilitates the feeding and removing

                                               of bulky workpieces

                                            • With XXL-hooks (Ø 32 mm)

                                          Typical field of application

                                          Universal twin needle operations in the field of  mediumheavy duty applications

                                         Performance features

                                         • Max. stitch length 9 mm

                                         • Thread sizes up to Nm 10/3 max. Max.

                                         • sewing speed 3,000 stitches/min.
