827-289122-M

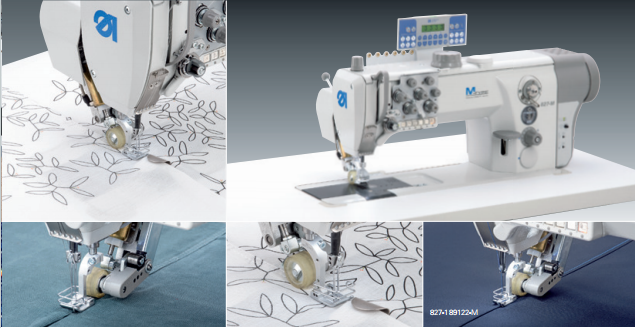

M-TYPE 827-M SENSITIVE with needle feed – the twin needle specialist for fine materials

                                           • Intermittently operating top puller feed for pucker-free seam – working extremely

                                             close behind the sewing foot, with direct influence on the seam

                                          • Optimized sewing kinematics for perfect sewing results when processing

                                             particularly fine materials

                                          • Integrated direct drive with networkable “DAC classic” control incl. operating

                                            panel OP1000 – Industry 4.0 “ready”

                                         • Automatic basic functions like thread trimmer, automatic backtacking and

                                           pneumatic sewing foot lift

                                        • Hooks coated with diamond-like carbon for minimum oil consumption at

                                          the sewing point

                                       • Coated needle bar and presser bar for minimum oil consumption in the machine head

                                       • Coated hook covers for better material sliding properties during the sewing process

                                       • Also available as single needle machine (827-189122-M)

                                     Field of application

                                     Assembly seams and decorative topstitching operations in the processing of long

                                     seams in the fields of home textiles, sun protection and awnings as well as

                                     technical textiles

                                    Performance features

                                    • Needle distances: 3.2 up to 10.0 mm

                                    • Max. stitch length 9 mm

                                    • Max. sewing speed 3,800 stitches/min.

                                    • Max. sewing foot lift 16 mm
