867-190445-M

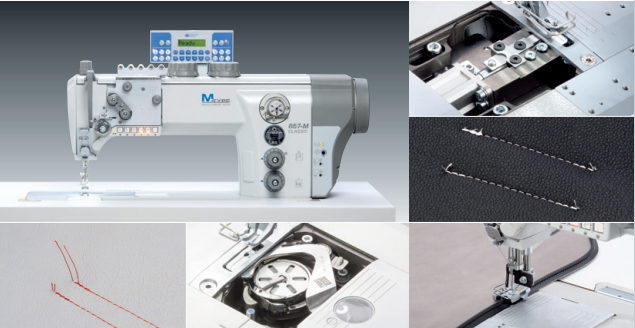

M-TYPE 867-M Automotive – CLASSIC Goldline with XXL hook and short thread trimmer

                                             • Integrated direct drive with networkable “DAC classic” control incl. operating

                                               panel OP1000 – Industry 4.0 „ready”

                                             • The short thread trimmer (KFA) guarantees a remaining thread length of approx. 5

                                               mm only – no manual trimming of remaining threads required

                                            • Lockable control elements for high process reliability

                                            • High efficiency due to automatic basic functions like thread trimming, automatic

                                              backtacking and pneumatic sewing foot lift as well as additional functions like

                                              integrated second stitch length, addi-tional thread tension and quick stroke

                                             adjustment

                                           • The optional device “Neat Seam Beginning” (NSB) allows an optically perfect

                                             seam beginning with minimized thread quantity on the underside of the

                                             workpiece – no manual reworking

                                           • The large clearance and the slim sewing head facilitates the handling of

                                              large-area workpieces

                                           • Increased productivity due to the XXL hook (Ø 32 mm, 70% higher bobbin

                                             capacity in compari-son to the standard hook, Ø 26 mm)

                                           • Also available with L-hook (Ø 26 mm), (867-190425-M)

                                          Field of application

                                          Universal sewing operations in the automotive industry

                                         Performance features

                                         • Max. stitch length 12 mm (sewing equipments available up to a stitch length

                                           of 9 mm max.)

                                        • Max. sewing speed 3,400 stitches/min.
