867-490322-M

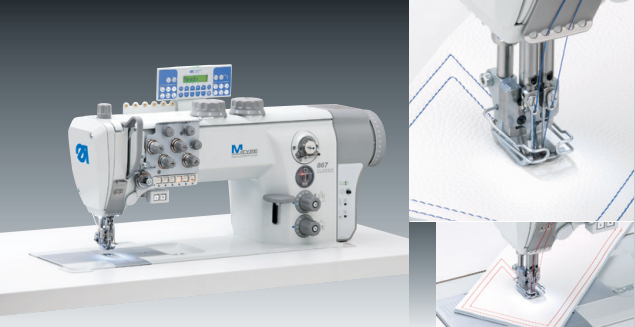

M-TYPE 867-M CLASSIC – The flat bed machine with disconnectable needle bars for perfect corner stitches

                                             • Integrated direct drive with networkable “DAC classic” control incl. operating

                                               panel OP1000 – Industry 4.0 “ready”

                                             • Disconnectable needle bars, controlled via er-gonomically arranged operating

                                               elements

                                            • Perfect corner stitches on the sector of decorative seams

                                            • Robust needle bar drive for the processing of ex-treme thick sewing goods

                                            • The slim sewing head facilitates the handling of difficultly accessible seam areas

                                            • Excellent stitch pattern, constantly tight stitch formation, even with large stitch

                                               lengths and extreme high thread sizes

                                            • The hook technology enables the processing of ex-treme thick sewing thread sizes

                                            • Equipment features corresponding to the M-TYPE CLASSIC version like thread

                                              trimmer, automatic backtacking, pneumatic sewing foot lift, integrated LED sewing

                                              lamp and maintenance indicator

                                          Field of application

                                          Twin needle decorative stitching in the field of home and car upholstery section

                                         Performance features

                                         • Max. stitch length 12 mm

                                         • Thread sizes up to max. Tkt. 10/3

                                         • Max. sewing speed 3,000 stitches/min.
