867-392342-M (LG)

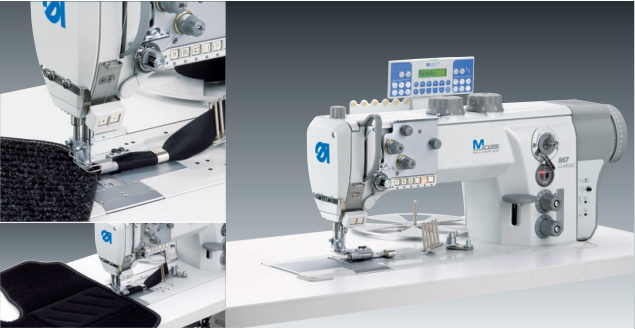

M-TYPE 867-M CLASSIC LG – the special machine with differentiable binding device

                                              • Integrated direct drive with networkable “DAC classic” control incl. operating

                                                panel OP1000 – Industry 4.0 “ready”

                                              • Differentiable binding device for low-tension binding operations for applications

                                                with inner and outer radii

                                             • Preselectable second stitch length for a perfect and even uniform seam appearance

                                               of narrow inner and outer radii

                                            • Increased productivity due to the XXL hook (Ø 32 mm, 70% higher bobbin capacity

                                               in compari-son to the standard hook, Ø 26 mm)

                                            • Great variety of standard binding attachments

                                            • M-TYPE CLASSIC-specific equipment features like thread trimmer, automatic

                                               backtacking, pneumatic sewing foot lift, integrated LED sewing lamp and

                                               maintenance indicator

                                            • Also available as ECO version (867-392040-M)

                                           Field of application

                                           Binding operations in the automotive industry and in the technical textiles area

                                          Performance features

                                          • Max. stitch length 12 mm (Sewing equipments available up to a stitch length

                                            of 9 mm max.)

                                         • Thread sizes up to max. Tkt. 10/3

                                         • Max. sewing speed 3,000 stitches/min.
