D867-190942-70-01 DELTA e-con

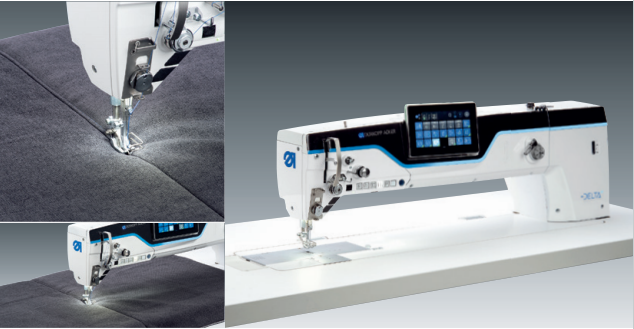

M-TYPE DELTA e-con long arm – for versatile single needle applications in large workpieces

                                          • e-con technology – for efficient, energy saving and sustainable sewing

                                          • M-TYPE DELTA e-con long arm sewing head with programmable setting elements

                                             and XXL hook (Ø 32 mm) for high bobbin thread capacity

                                          • The large clearance (700 mm wide and 128 mm high) facilitates the handling of

                                             large workpieces

                                          • Integrated sewing motor with network capable “DAC flex control” incl. operating

                                             panel Command-er Delta ensures optimum functionality and maxi-mum ease of

                                             use for “Industry 4.0 applications”

                                          • Machine-specific software with intuitive user inter-face

                                          • Graphical visualization of the progress within the seam programs

                                          • Integrated material thickness detection (MTD) for optimization of sewing parameters

                                            during the sewing process

                                          • Easy and precise needle positioning due to elec-tronical handwheel (scroll wheel)

                                          • Optional with step motor driven puller

                                          • 4 further subclass with XL- or XXL-hook in combination with long or short

                                            thread trimmer available

                                          • Extension kits with 1,000 mm clearance under the sewing head are available for all

                                            subclasses with single needle

                                        Field of application

                                        Reproducible assembly and decorative seams in large workpieces

                                        Performance features

                                        • Max. stitch length 12 mm

                                        • Max. sewing speed 2,500 stitches/min.

                                        • Max. alternating sewing foot stroke 9 mm

                                        • Max. sewing foot lift 20 mm
