D867-290942-70-01 DELTA e-con

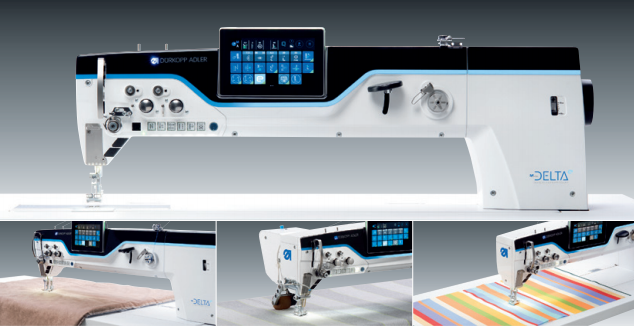

M-TYPE DELTA e-con long arm – The twin needle specialist for large sewing materials

                                             • e-con technology – for efficient, energy saving and sustainable sewing

                                             • M-TYPE DELTA e-con long arm sewing head with programmable setting elements

                                               and XXL hooks (Ø 32 mm) for high bobbin thread capacity

                                            • The large clearance (700 mm wide and 128 mm high) facilitates the handling of

                                               large workpieces

                                            • Integrated sewing motor with network capable "DAC flex control" incl. operating

                                              panel Commander Delta ensures optimum functionality and maximum ease of use

                                              for “Industry 4.0 applications”

                                           • Machine-specific software with intuitive user interface

                                           • Graphical visualization of the progress within the seam programs

                                           • Integrated material thickness detection (MTD) for optimization of sewing parameters

                                             during the sewing process

                                          • Easy and precise needle positioning due to elec-tronical handwheel (scroll wheel)

                                          • Optional with step motor driven puller

                                          • 2 further subclasses available as version with XL-hooks or with short thread trimmer

                                          • Extension kits with 1,000 mm clearance under the sewing head are available for all

                                            subclasses with twin needle

                                         Field of application

                                         Reproducible assembly and decorative seams in large workpieces

                                        Performance features

                                        • Needle distances up to 50 mm max.

                                        • Max. stitch length 12 mm

                                        • Max. sewing speed 2,500 stitches/min.

                                        • Max. alternating sewing foot stroke 9 mm

                                        • Max. sewing foot lift 20 mm
