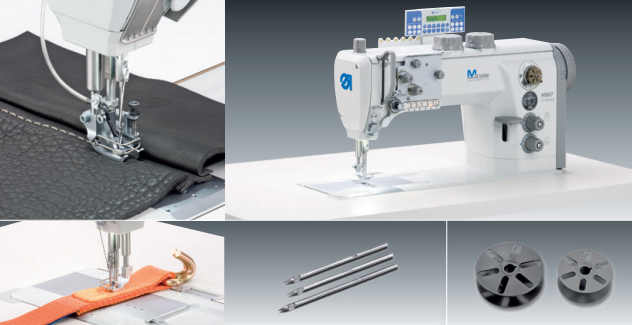

H867-190362M-TYPE H867 CLASSIC Goldline – flat bed ma-chine as reinforced version
• High efficiency due to automatic functions like thread trimming, automatic backtacking and pneu-matic sewing foot lift • Powerful and effective feeding system with bottom feed, needle feed and alternating top feed • The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky work-pieces • The sewing foot stroke up to 9 mm allows the safe climbing over material plies with large differences in height • Optimized hook system with 3XL bobbin (Ø 40 mm) for thread sizes up to Tkt. 8/3 max. • Robust thread trimmer guarantees a safe and clean cutting of extreme thick sewing threads • Sewing drive with networkable “DAC classic” control incl. operating panel OP1000 – Industry 4.0 “ready” • Also available as twin needle machine (H867-290362) • Also available as ECO version (single needle or twin needle H867-190060 / H867-290060) • Also available as Silverline version (single needle or twin needle H867-190162 / H867-290162) Field of application Assembly and decorative seams in medium to heavyweight workpieces Performance features • Max. stitch length 12 mm • Thread sizes up to max. Tkt. 8/3 • Max. sewing speed 1,800 stitches/min. |
