550-D800 单针平板机型 /D867-190945-01

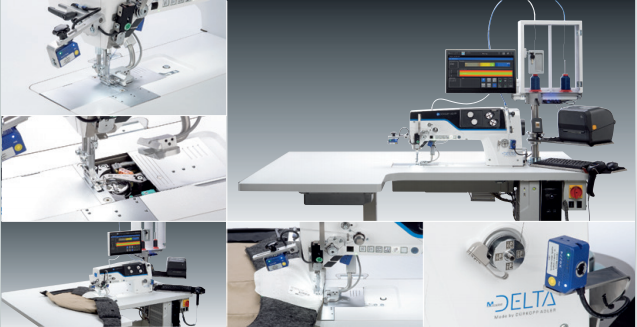

550-D800 – Engineered workstation for documented sewing of airbag tearing seams

                                          • Ergonomically designed workstation for optimum production conditions

                                          • M-TYPE DELTA sewing head class D867 with XXL hook (Ø 32 mm) for large

                                            bobbin thread capacity

                                          • Thread nipper and short thread trimmer for optically perfect seams

                                          • Electronic thread tension (ETT) with active thread tension regulation for optimum

                                            thread tension level and for monitoring the limit values

                                          • Function module “Skip Stitch Detection” (SSD)

                                          • Motorized edge guide with sewing material guidance incl. sensory pincer detection

                                          • Housed reel stand with stationary scanners for sewing thread identification

                                          • Bobbin identification via barcode scanner (bobbin winder and hook)

                                          • Touch panel PC with intuitive application software and database for storing

                                            all relevant data

                                          • UPS (uninterruptible power supply)

                                          • Equipped with handheld scanner, barcode printer, fingerprint sensor as

                                            well as keyboard and mouse

                                          • Motorized height-adjustable stand for seated and standing operation

                                         Field of application

                                         Documented sewing of airbag tearing seams for automotive seat covers
