911-210-8055-10

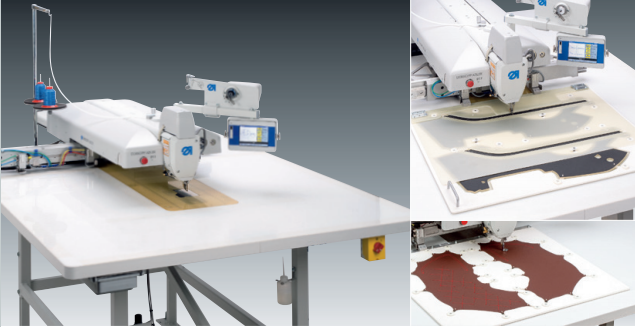

CNC-controlled sewing unit with clamping system for large-area appliqués – sewing

      field size max. 800 x 550 mm

                                           • Overlapped working method due to alternating clamp system

                                           • Max. sewing field size 800 x 550 mm

                                           • Touch screen operating panel with intuitive user interface

                                           • M-TYPE 867 with attached XY slide system

                                           • Creation of seam programs by means of teach-in programming or PC programming

                                             software (DACcad Professional)

                                           • Electronic thread tension for optimum stitch forma-tion in all drawing-off directions

                                           • Electronic thread clamping device for neat seam beginning on the upper side of the

                                              sewing material

                                           • Optional kit "Neat Seam Beginning (NSB)" guaran-tees a visually perfect seam

                                              beginning with min-imised thread quantity on the underside of the fabric

                                          • Increased productivity due to the XXL hook (Ø 32 mm, 70% higher bobbin capacity in

                                            compari-son to the standard hook, Ø 26 mm)

                                         • Programmable sewing foot stroke for processing different material plies

                                         • “DAC comfort” control system – prepared for connecting external control systems

                                               (Poka Yoke) and networking in a local network

                                       Field of application

                                       Automated sewing applications in the field of automotive, technical textiles

                                       and leather goods

                                      Performance features

                                      • Max. sewing field size 800 x 550 mm

                                      • Max. thread size Tkt. 15/3

                                      • Memory capacity for 199 seam programs
