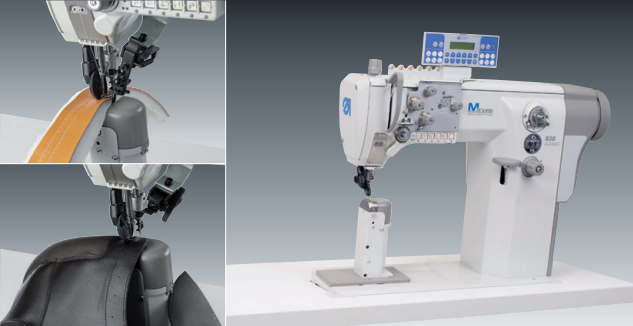

838-180122-MSingle needle post bed machine with bottom feed for medium heavy materials • Highest precision on stitch locking even during sewing speed changes • Pneumatic switchable second thread tension for optimized sewing results • Low noise and vibration • The powerful and effective feeding system with bottom feed and driven roller presser guarantees excellent material feed when processing different material thicknesses • Electropneumatic presser foot lifting and backtacking enabling setting of high pressure on foot for sewing of heavy materials • Large vertical hook (Ø 26 mm bobbin) • Needle change without tools • Lubricating system with central oil tank and oil pump • Integrated built-in motor to save energy, easy main-tenance • Switch button for setting a reduced stitch, e.g. at material borders • Integrated electro-pneumatic elements • Integrated keypad with ergonomically arranged sensor key • Integrated LED sewing light (optional) Field of application All kinds of leather, textile materials and sport shoes Performance features • Max. stitch length 10.0 mm • Max. sewing speed 2,000 stitches/min. • Max. sewing foot lift 12 mm • Max. needle size 230 Nm |
