888-356122-M

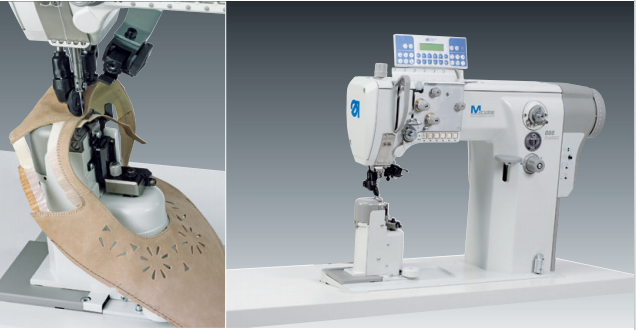

M-TYPE 888-M – the left-hand post bed machine for inserting lining and simultaneous undertrim-ming

                                             • Integrated direct drive with networkable “DAC classic” control incl. operating

                                               panel OP1000 – Industry 4.0 “ready”

                                             • The robust construction of the separately motor driven undertrimmer guarantees

                                               uniform and neat lining edges even in inner curves and other difficult sections

                                            • The powerful and effective feeding system with wheel feed, needle feed and driver

                                               roller presser guarantees excellent material feed when process-ing different

                                               material thicknesses

                                           • Equipment for 4 different trimming margins

                                           • Most precise stitch formation, even during sewing speed changes

                                           • Increased productivity due to large vertical hook

                                           • Push-button for setting a reduced stitch, e.g. at fab-ric edges

                                         Field of application

                                         Inserting and undertrimming of lining on upper shoe parts

                                        Performance features

                                        • Max. stitch length 5 mm

                                        • Max. sewing speed 3,000 stitches/min.
