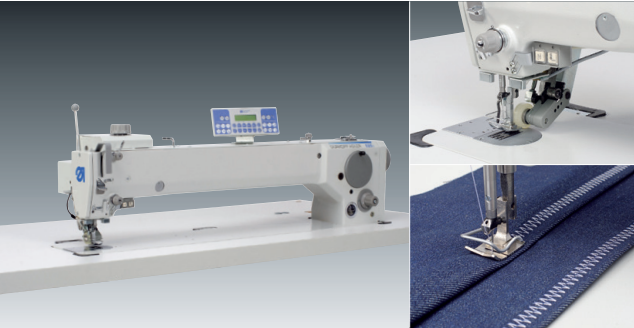

525i-947-75Long-arm zigzag sewing machine – specialist for decorative zigzag seams and large workpieces
• Single and twin needle decorative seams with 19 available pattern cams which can be exchanged in few minutes • Secured thread trimming for thick threads up to Tkt. 10/3 • Better stitching results due to the optimized thread trimming system • Equipped with an extra large hook for maximum thread capacity and productivity • Modified lubrication system and a reservoir in the machine arm reduce maintenance, guarantee the correct lubrication dose and protect the hook against wear • Optimized thread trimming system for better stitching results • Various arm lengths available • Machines can be equipped with pneumatically driven puller (optional, different widths of puller 9 mm, 15 mm or 45 mm) • Backtacking and foot lifting, pneumatically driven (optional) • Needle cooling device (optional) • Arm clearance heigth can be increased to 183 mm (optional) • Extra heavy stand plus table top available (optional) Field of application Manufacturing and repairing of large dimensioned workpieces, such as windsurfing sails, wetsuits, tents, awnings etc. Performance features • Max. zig zag width 10.0 mm • Max. stitch length 5 mm • Max. sewing speed 2,500 stitches/min. • Max. sewing foot lift 12 mm Last527i-911 / 527i-947Next524i-947 |
