G767-180342

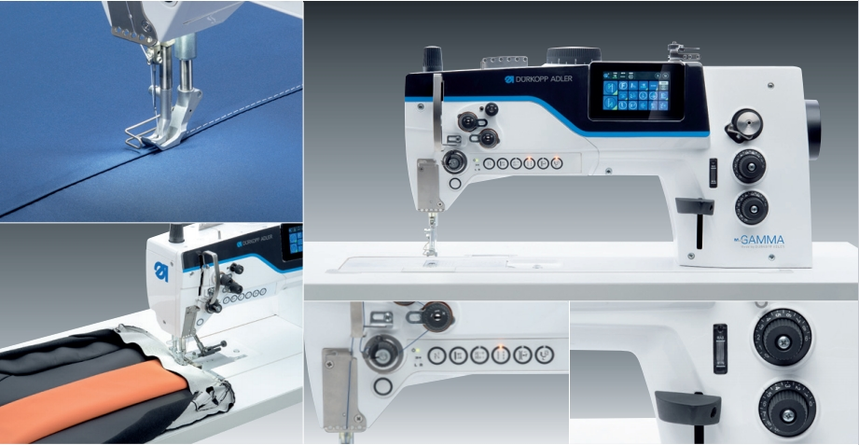

M-TYPE GAMMA G767 Goldline – single needle machine with useful additional functions for greater efficiency and excellent ease of use

                  • Integrated sewing drive with high quality controlunit “DAC classic” with automatic

                    functions – In-dustry 4.0 “ready”

                  • Includes “DAC client” as standard for connecting with QONDAC system (Plug & Play)

                  • Integrated OP4000 touch control panel with intuitive user interface for comfortable

                    management of sewing parameters and visualization of sewing pro-grams in automatic mode

                  • Low life-cycle costs due to high reliability and dura-bility

                  • Powerful and effective feeding system with bottom feed, needle feed and alternating feet

                  • Increased productivity due to the XXL hook (Ø 32 mm)

                  • Higher efficiency due to automatic functions like thread trimming (remaining thread

                     length approx. 15 mm), automatic backtacking, pneumatic sewing foot lift as well as

                     additional “Goldline” functions like 6-function keypad, integrated second stitch length,

                     additional thread tension and quick stroke adjustment

                  • Sewing foot lift up to 20 mm facilitates the feeding and removing of bulky workpieces

                  • Maximum sewing foot stroke up to 9 mm allows a safe climbing over material plies with

                     large differ-ences in height

                  • Large clearance (350 mm wide and 128 mm high)

                   Field of application

                   Universal sewing operations for medium-heavy duty applications

                  Performance features

                  • Max. stitch length 9 mm

                  • Thread sizes up to Tkt. 10/3 max.

                  • Max. sewing speed 3,000 stitches/min.

                  • Max. sewing foot lift 20 mm
